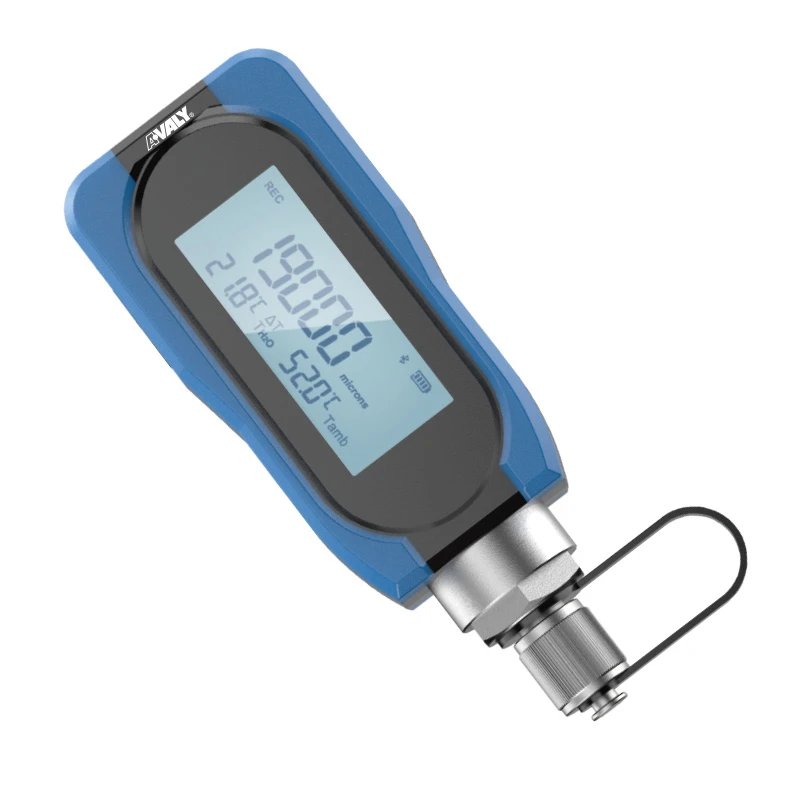

The VA-GW760 digital vacuum gauge, or wireless digital vacuum meter, obtains accurate measurements during the vacuum process of the compressor system, eliminating all impurities or moisture. VA-GW760 can also be used to evaluate system leakage and discern vacuum pump quality. It is made of abs plastic and metal, and a sensor whose functionality is to measure microns during the vacuum process. It has a range from 0 to 19 thousand microns. In addition, it is made to work in different environments, since it can operate from -178ºC to 60ºC. Its main functionalities include data logging, report generation and configuration of high and low pressure alarms from its screen or mobile app.
VACUUM RANGE | 0-19,000 micras |
APPLICATION | Refrigeración, aire acondicionado, industrial |
MATERIAL | Plástico y metal |
COLOR | Negro |
OVERPRESSURE | 800 PSI máx. |
BATTERIES | .-Batería AA (no incluida) |
INCLUDES | Estuche |
MEASUREMENT UNIT | Micrones, PSI, mBars, Pascales, Torr, mTorr |
MEASUREMENT TYPE | Vacío del sistema de compresor |
SENSOR TYPE | Termisor |
DIFFERENTIAL | 10% +/- (100-1000 micrones) |
RESOLUTION | 1 micra (para 0-200 micras) |
OPERATING TEMPERATURE | 0 a 150°F - 0 a 65°C |
PRECISION | 10% +/- (100-1000 micrones) |
DISPLAY | Digital |
