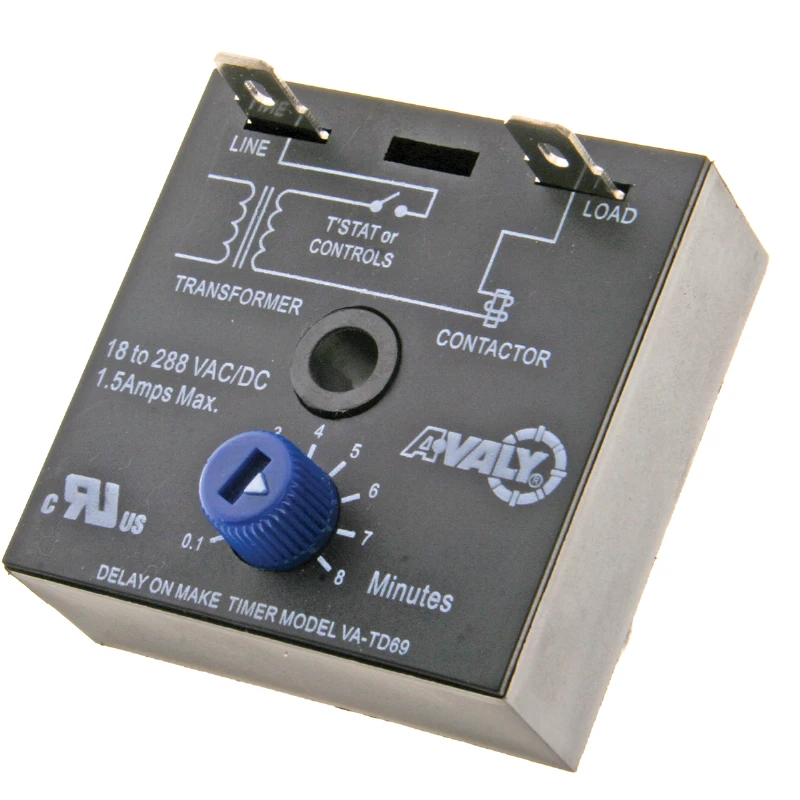

ADJUSTABLE TIME DELAY (DELAY ON MAKE)
VA-TD69
- Delay on make
- Rango de precisión: 3 segundos a 10 minutos.
- Voltaje de entrada: 19 V a 288 V c.a. 50 Hz / 60 Hz o 24 V c.c.
1.00
Descripción
Delay device (time switch) Delay on Make. With adjustable time. Helps to program start-up periods in freezing and air conditioning systems, to reduce the instantaneous load.
Características
| CAPACITY RANGE | 3 segundos a 10 minutos |
| APPLICATION | Refrigeración, aire acondicionado, industrial |
| MATERIAL | Plástico y metal |
| COLOR | Negro |
| CONNECTION | 2 Terminales Macho de 1/4 |
| VOLTS | 18 A 288V AC/DC |
| HZ | 50/60 Hz |
| AMPS | 1 A (Corriente Máx) |
| CURRENT PEAKS | 10 A MÁX. |
| MINIMUM CURRENT LOAD | 40 mA |
| OPERATING TEMPERATURE | -18°C a 71°C (0°F a 160°F) |
