motor recovery equipment 3/4 hp, 558 psi, 0°c to 40°c motor recovery equipment 3/4 hp, 558 psi, 0°c to 40°c

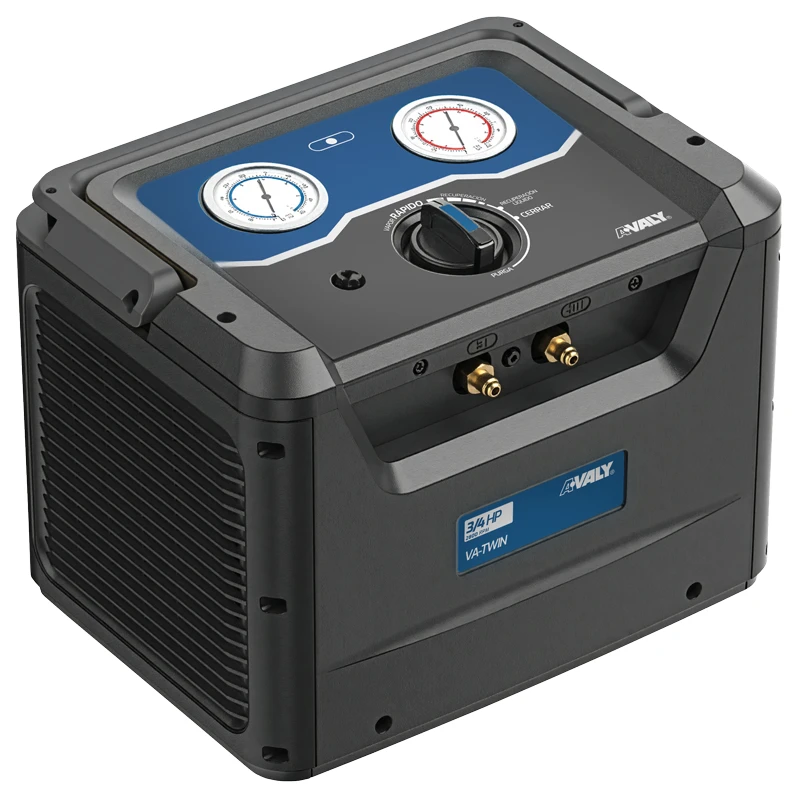

MOTOR RECOVERY EQUIPMENT 3/4 HP, 558 PSI, 0°C TO 40°C VA-TWIN

  • 3/4 HP
  • Refrigerantes  CAT.lll: R-12, R-134A, R-401C, R-406A, R-500. CAT.IV: R-22, R-401A, R-401B, R-402B, R-407C, R-407D, R-408A, R-409A, R-411A, R-411B, R-412A, R-502, R-509. CAT.V: R-402A, R-404A, R-407A, R-407B, R-410, R-507.
1.00

Descripción

Recovery machines are used to remove/remove refrigerant from refrigeration and air conditioning systems prior to equipment maintenance or repair.  The VA-TWIN operates through a piston starter box. This cylinder allows for more consistent performance during the recovery phase. Its starter box is completely isolated from the refrigerant flow. As a result, the durability will be greater, since the bearings are not in contact with the coolant as in the rest of the units. In addition, by having better cooling in the cylinder head, the seals and valves remain cool and have greater durability.

Características

APPLICATION Refrigeración, Aire acondicionado, industrial
MATERIAL Plastico y metal
COLOR Azul
COMPRESSOR Barra Horizontal libre de aceite, aire refrigerado.
DIMENSIONS 350 mm (L) × 260 mm (W) × 280(H) mm
REFRIGERANTS A2L COMPATIBLE - III: R12, R134A, R401C, R406A, R500, R1234yf IV: R22, R401A, R401B, R402B, R407C, R407D, R408A, R409A, R411A, R411B, R412A, R502, R509 V: R402A, R404A, R407A, R407B, R410A, R507,
RECOVERY EFFICIENCY Recovery rates: Level III: 0.22 kg/min (Rate), 1.8 kg/min (Vapor), and 5.0 kg/min (Liquid, Push/Pull); Level IV: 0.25 kg/min (Rate), 2.0 kg/min (Vapor), and 6.0 kg/min (Liquid, Push/Pull); Level V: 0.
HIGH VOLTAGE SHUTDOWN 38.5bar / 385okpa (558PSI)
WEIGHT 9.5 Kg
VOLTS 110-220V AC
HZ 50/60 Hz
HORSEPOWER 3/4 HP
RPM 2,400 RPM (Velocidad)
INCLUDES .-Mirilla, Filtro, Conexión y correa.
OPERATING TEMPERATURE 0°C - 40°C
